Return Pump or Closed Loop
The Vectra can be installed and operated as either a return pump or as closed loop flow pump.
Two distinct operational configurations
Return Pump features calibration and Speed Lock
Closed Loop features random and pulsing m
Inline or Submersible
Inline or Submersible
Vectra pumps feature a sealed motor and magnetic drive for internal and external operation as a return pump for Closed Loop flow. The Vectra’s flexibility will fit your needs for just about any setup that you wish to achieve.
Vectra Driver
The Vectra driver features EcoTech’s QuietDrive technology.
Choose between Return Pump or Closed Loop configuration
Access Vectra operational modes including Feed Mode
QD Technology minimizes DC motor noise
Fully adjustable flow
Communicates with other QD and EcoSmart compatible devices

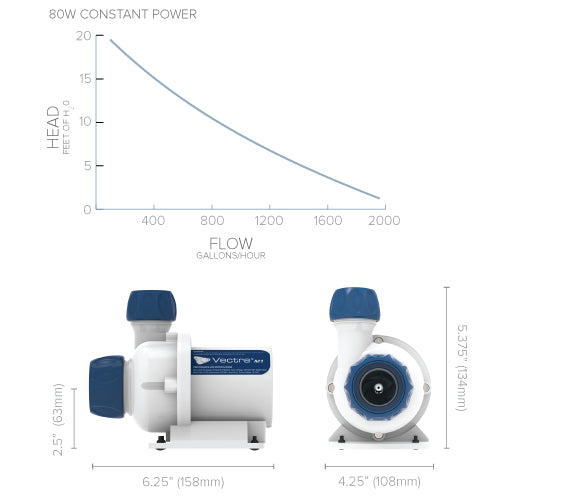

Specifications

Flow: 2,000 gph (7,500 lph)
Wireless: Included
Max Head Pressure: 21.5 feet (6.5 m)
Footprint: 4.5 in. x 7.5 in. (113.5mm x 192.6mm)

Fittings: Input: 1.25 in. (31.75mm) Output: 1 in (25mm)

Power,
Wattage: 80 watts
Battery backup compatible
